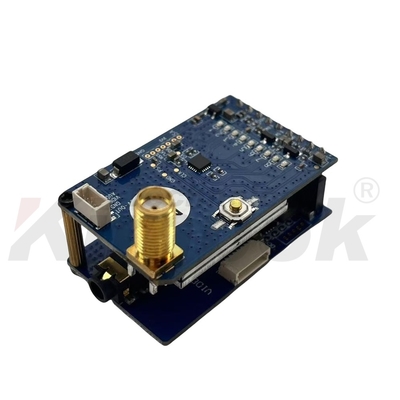

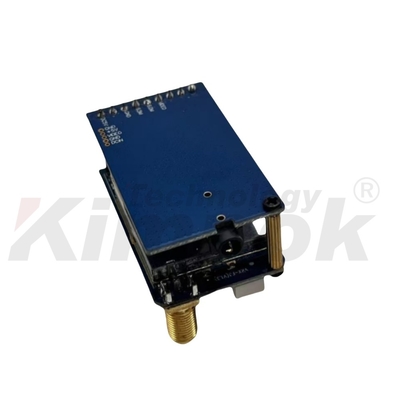

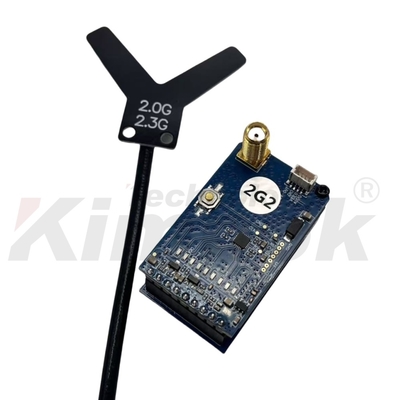

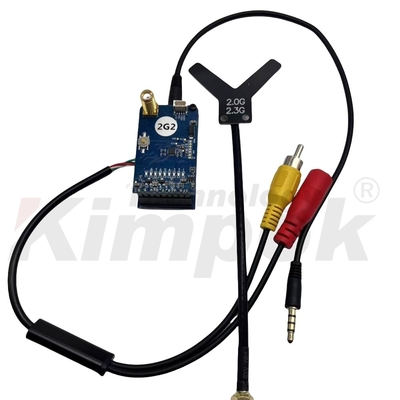

2.2G VRX Support FatShark Skyzone and Other Glasses with 8 Channels Receiver Module

2.2G VRX Support FatShark Skyzone and Other Glasses with 8 Channels Receiver Module

I.Main features

Channel 8CH;

Support FatShark,Skyzone and other glasses VR headset display straight plug and analog display and other connection use;

High-sensitivity reception -97dBm;

High efficiency DC/DC power supply support 7-36V;

Support 5V voltage output;

Short click switch channel;

II.Product Parameter

Receiver(ground end):

Input voltage:7-36V DC(2-6S)

Output voltage:5V/0.5A

Video system:PAL/NTSC

Number of channels: 8 channels

Channel selection:Short press the switch frequency

Receiving frequency: 2000-2280MHz

Sensitivity:-97dBm (MAX)

Antenna interface:SMA(outer screw inner hole)

Modulation type:FM

2.Use a key to adjust the channel,short press the change channel,as shown in the figure below.

IV.Matters need attention:

1.Please installthe antenna and then connect the power supply to avoid equipment failure; Select the appropriate

working frequency and set the transmitter to the same frequency as the receiving end(see the frequency table for details);

2.The input voltage is 7-36V(2-6S),do not use over the voltage range;

The output voltage current is 5V/0.5A.Please note that if the power is supplied to other equipment through the receiver output,the working current is limited to 0.5A.Do not use the voltage output end of the product over the 5V0.5A,otherwise the receiver may be damaged;

3.Both 5V and 5V OUT are output terminals, do not connect to the power input terminal or the battery, otherwise it will cause damage.
